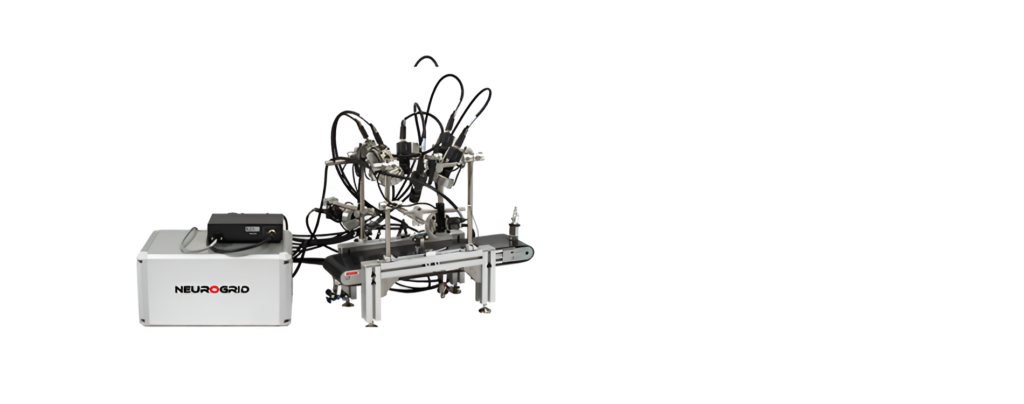

Advanced Software

Software with impressive functionality
The ideal all-round software for demanding inspection tasks in manufacturing processes. software offers two user interfaces. One for the development of inspection solutions, the other for controlling automatic inspection. From camera integration to result output to the control system or master computer – Software meets all demands made of an image processing system with a single universal PC standard software. The entire functionality is presented using an ergonomic and intuitive Windows® user interface. To use NeuroCheck, no programming skills are necessary.

The NeuroCheck software offers essential functions

Manual mode
Manual mode offers a development interface for the interactive graphical creation of an inspection solution. Here you define the logical structure of the check procedure and the parameters for executing the algorithms.

Automatic mode
In automatic mode, the previously created inspection solution runs automatically. The system monitor visualizes status and results in configurable windows. The process is controlled by a PLC or master computer.

Camera integration
NeuroCheck supports a multitude of up-to-date digital cameras with established standards and various resolutions. Use the integrated „device manager“ to setup and configure the cameras comfortably.

Image processing algorithms
The software encapsulates the NeuroCheck image processing library with thousands of powerful and long-proven evaluation algorithms. The check functions are logically grouped into categories such as image capturing, pre-processing, analysis and gauging.

Process integration
For communicating with the supervisory control system, a number of modern standard interfaces are available. Execution of the inspection procedure can be affected dynamically by the process peripherals. Reversely, NeuroCheck also sends the inspection results and measurement values to the peripherals.

Technical Data
Cameras
Digital cameras according to Firewire (IEEE 1394) a/b and GigE Vision Standard
Framegrabber for Camera Link and analog cameras
Image resolution currently from 640*480 to 4008*2762 pixel
Line-scan cameras with sensor size of 1k,2k,4k,8k
Gray value cameras with 8 bit or 12 bit depth
color cameras with 24 bit or 36 bit depth
Sensor types CCD and CMOS
Triggered image capturing(hardware or software trigger)
Synchronized of parrallel image capturing

Functions & Algorithms
Image enhancement (contrast, hostogram, illumination)
Geometrical transformation(ratation, mirroring, scaling)
Image filters(smoothing, contrast, edges, morphology)
Binary threshold, segmentation, blob analysis and pixel counter
Edge extraction with subpixel precision
Automatic position and angle correction
Template Matching
Color matching and color space transformation
Model geometries(line,circle) with subpixel precision
Analysis of geometrical features
Print quality inspection
Bar code and Data Matrix code identification

Communication Interfaces
Digital I/O
Field bus(PROFIBUS)
Industrial Ethernet(PROFINET, Ethernet/IP, MODBUS/TCP, EtherCAT, Powerlink)
Standard Ethernet(TCP/IP, UDP/IP)
Serial interface(RS-232)
Data formats XML,CSV,TXT
SQL data bases
NeuroCheck Plug-In Interface
You can further extend the NeuroCheck functionality utilising your own algorithms into the NeuroCheck software environment through the Plug in Facility. Neurocheck offers a software extension wizard built into the software. this creates the complete infrastructure of the Plug in you then only have to implement the content of the executing function within th Plug in Editior

Please kinldy visit to get more information on www.neurocheck.com

With Neurogrid you can find the solution for your every industrial challenge and our machine vision experts advise you with their many years of experience in this field. Contact us, because we look forward to serve you the best.

• Inquiries to our sales department- sales@neurogrid.in
• For more details, please call +91 91300 49555
